Upgrade your rear caliper
Words & pictures by Stig; with additional forum information supplied by Rf9rider & Rich.

Unfortunately the upgrading of the rear caliper to matching bluespot isn't a simple case of remove one and fit the other. Both the above members upgraded their rear brakes and findly enlightened us all into whats involved to make the upgrade. Whether or not there's performance gains to be had may be negligible, but the bling factor certainly played a large part.

The Parts


The Caliper from the fazer1000

Part no

OEM#: 5LV2580W00

The Hanger-

Part no

OEM#: 5LV-25819-00


These are the custom pieces
3mm spacers for the axle to centralize the caliper on the disc.

spacer to line up torque arm

Torque arm to restrain hanger bracket.


Adapting the Hanger


Mark out the impact area and then remove minimum amout of material...just enough to make a clearance.

Easier if you have access to a Dremel or similar

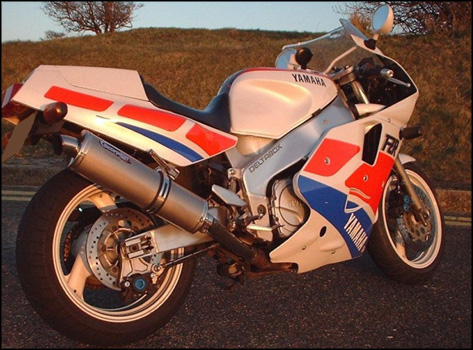

The Result!


The upgrade is based on the Fazer100 due it it having the same size rear disc as the EXUP.

The front of the torque arm is secured to the dogbone/swingarm mounting point. The spacer may be needed to align depending on where you site the hanger.

Rf9rider & Rich have both been good enough to provide the above information.

Thanks guys!
