YZF1000R
Useful information provided by Thunder-Exup

Model codes

4SV1

4GV1

4WN1

(GB, B, DK, NL, N, E, PRT)

(I)

(CDN)

4VD1

4VF1

4XJ1

(D, S, SF)

(CH, A)

(AUS)

Model changes 1996-2003

Most if not all changes happened around 1997

If you look in the back tail fairing just behind the rear seat you will find a 3 pin plug so your dealer can fit an alarm more easily.

Removed the anti vibration weights on the heel plates.

Did away with the black two-piece clip-ons in favor of one-piece alloy clip-ons.

More adjustment on the forks.

In 1998 the rear sprocket went up 1 tooth from 46 to 47 (i think )
47 tooth could be EURO / USA

Ignition modules (all Nippondenso)

TNDF35 (4SV1)

TNDF36 (4VD1)

TNDF37 (4VE1)

TNDF38 (4VF1)

TNDF39 (4XJ1)



Paint codes & factory colours 1996-2002/03, just 1997 USA

Paint codes

UR BL2 - Color Info (BL2:BLACK 2:004B)

UR VRC1 - Color Info (VRC1:VIVID RED COCKTAIL 1:0121)

BWC1 - Color Info (BWC1:BLUISH WHITE COCKTAIL 1:0390)

SS - Color Info (SS:STAR SILVER:006M)

Factory colours (click for a larger picture)

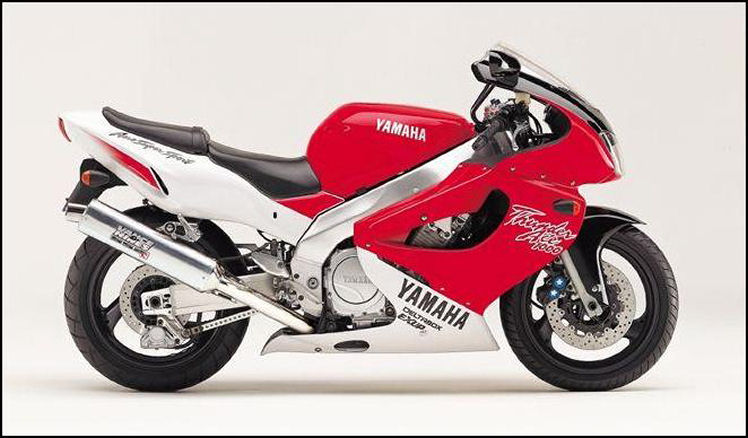

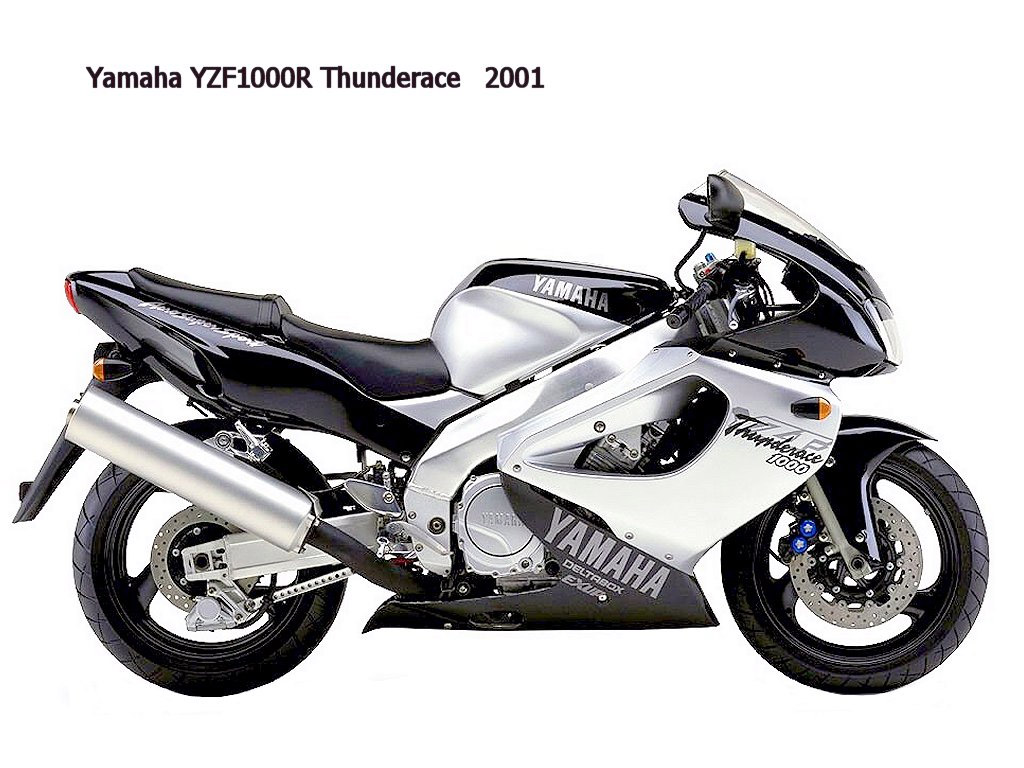

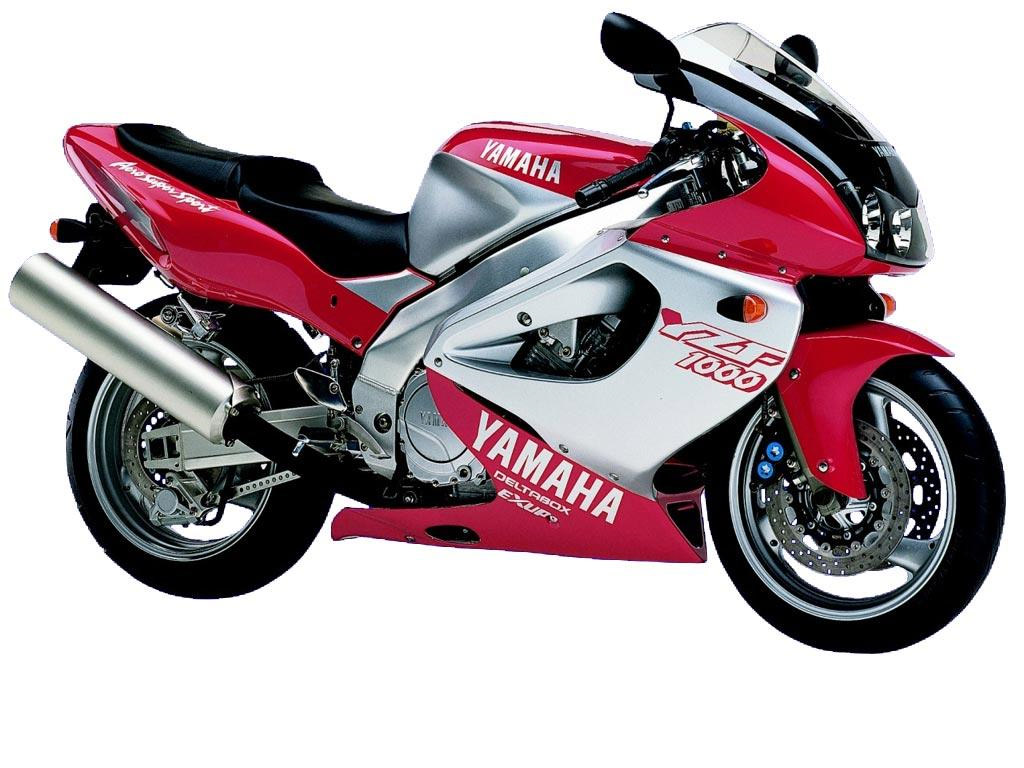

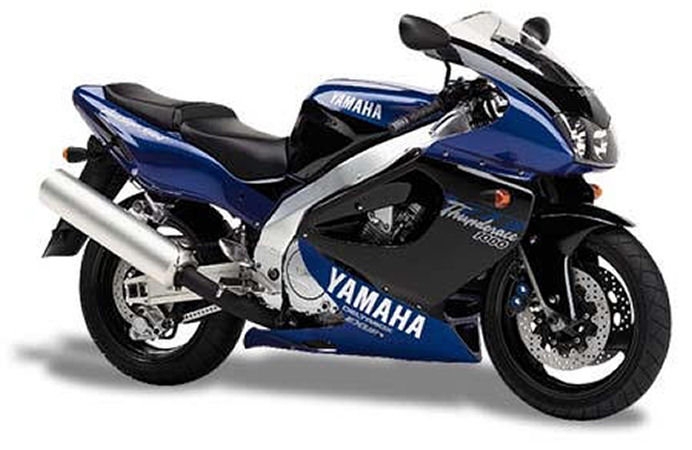

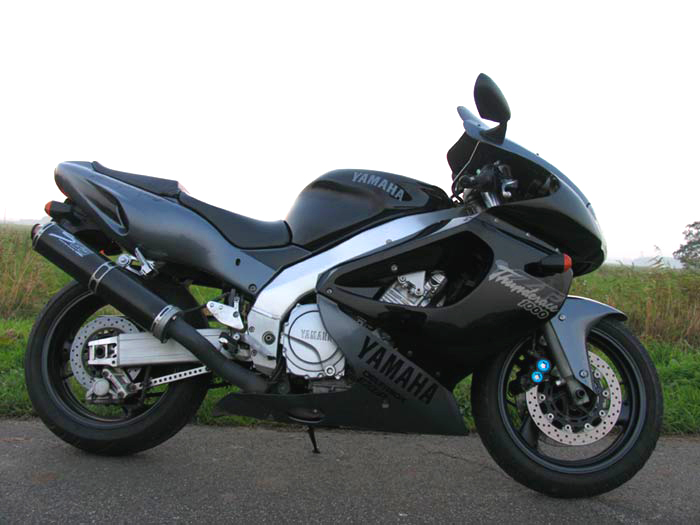

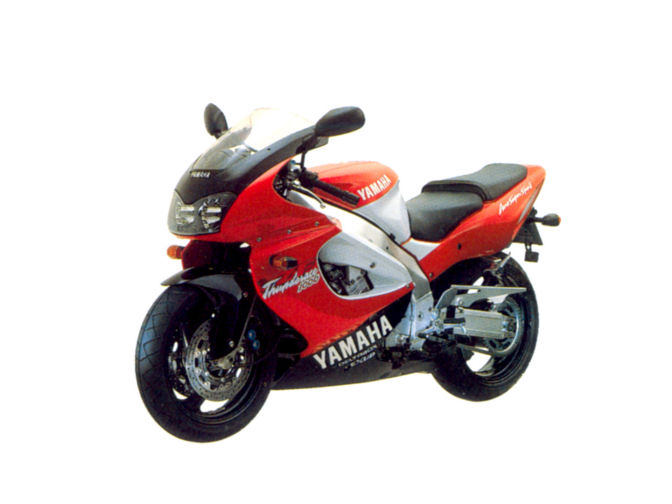

Black/silver (thumbnail)Red/white (thumbnail)Red/white/black (thumbnail)Blue/black (thumbnail)Red/silver/red (thumbnail)Black/silver/black (thumnail)
Rev counter diagnostics
The Thunderace performs self-diagnostics on ignition and uses the rev counter to inform you of problems. If your 'Ace rev counter flicks up to a certain value then returns, she's trying to tell you something:

3000rpm

7000rpm

8000rpm

indicates a problem with the throttle position sensor

indicates a problem with the EXUP valve or motor

indicates a problem with the fuel level indicator circuit
